Transformers

Reliable transformation at the heart of energy

Powals Energy Solutions supplies distribution transformers, medium-voltage power transformers and special-type transformers to the TS EN 60076 / IEC 60076 standard series, with a project-specific engineering approach. Every transformer passes routine tests before dispatch and is delivered with its expected full-load performance documented.

TransformersImage coming soon

Power Range25 kVA – 16 MVA

Voltage Level36 kV'a kadar

Reference StandardTS EN / IEC 60076

Product Families

Distribution Transformers

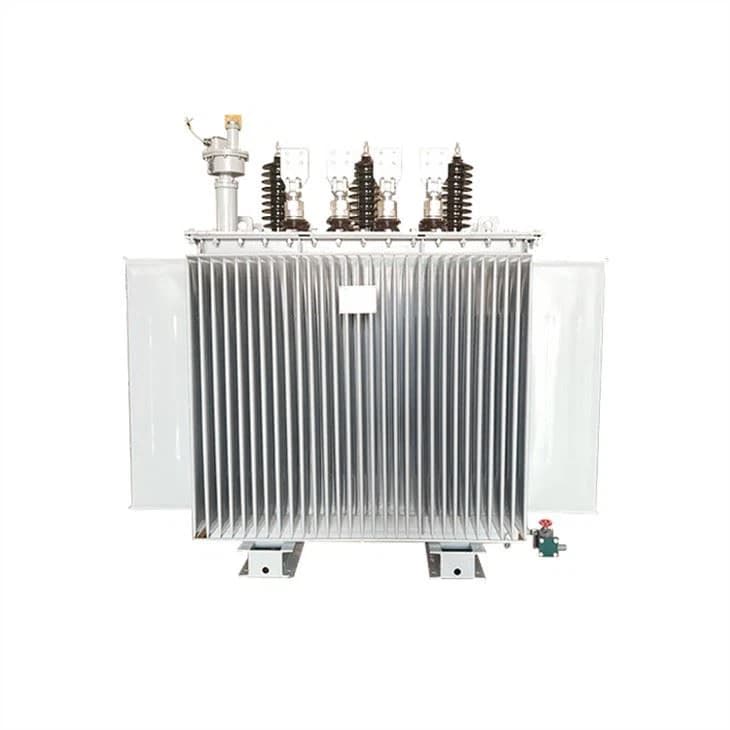

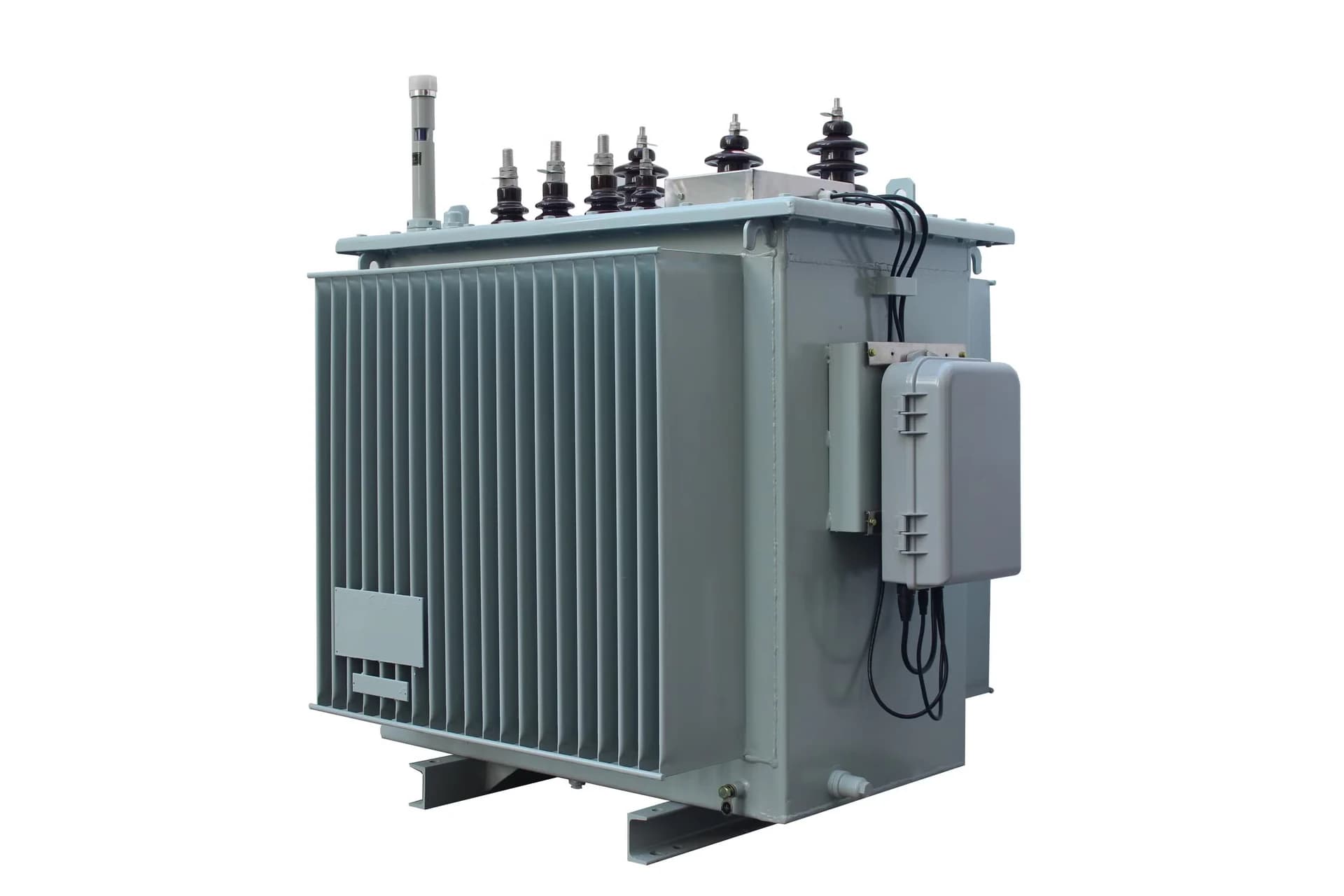

Up to 5000 kVA and 36 kV; hermetic, gas-cushioned or conservator type; single/three-phase.

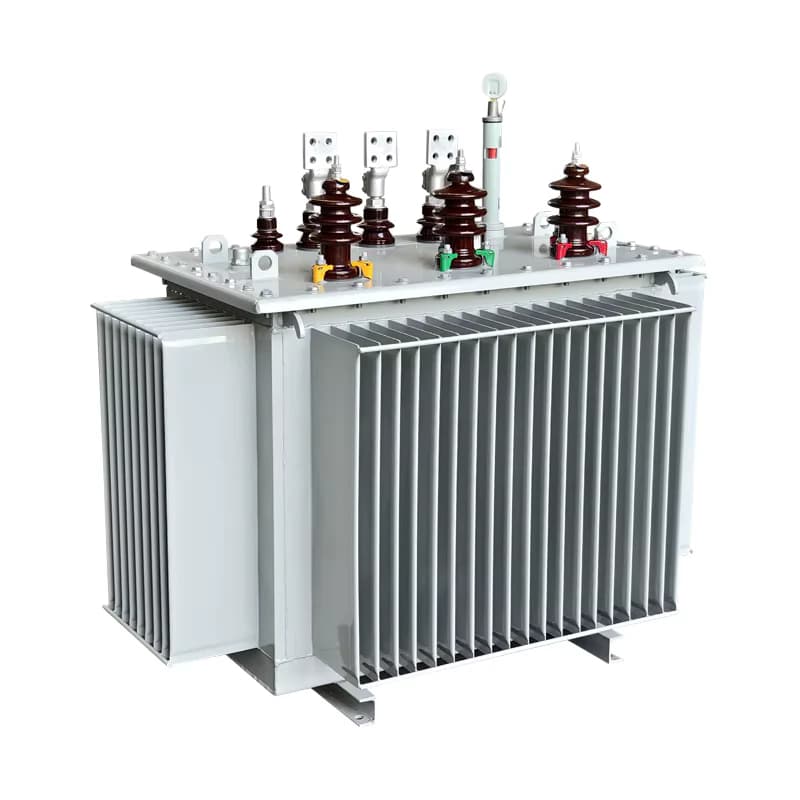

MV Power Transformers

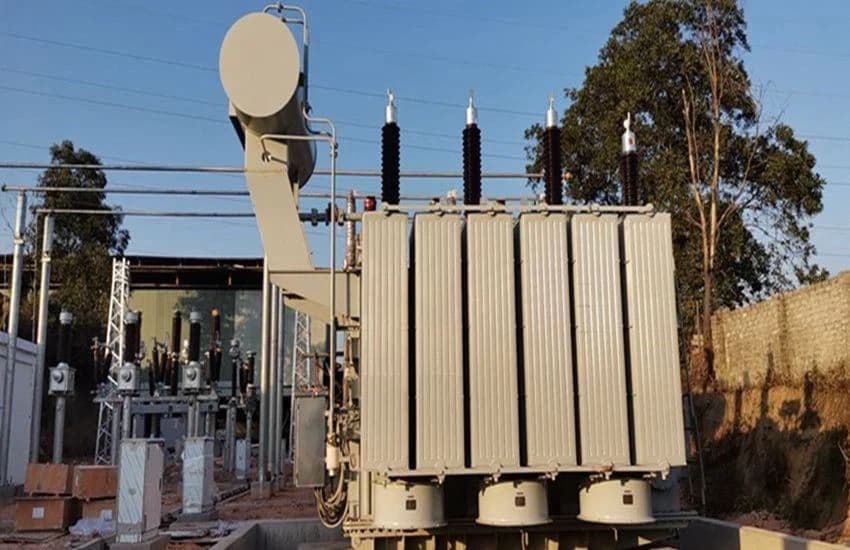

From 5 MVA to 16 MVA; off-load (OCTC) or on-load (OLTC) tap changer.

Special-Type Transformers

Auto, isolation, rectifier, pulse (6/12/24), earthing transformers and shunt reactors.

Key Technical Values

Rated Power (Distribution): 25 kVA – 5000 kVA
Rated Power (MV Power): 5 MVA – 16 MVA
Rated Voltage: 36 kV'a kadar
Frequency: 50 / 60 Hz
Phases: 1 veya 3
Cooling: ONAN · ONAF · KNAN · KNAF
Tap Changer: OCTC / OLTC
Bushing: Porselen / Plug-in

Application Areas

Power distribution networks and substations
Industrial plants and organised industrial zones
Solar and wind power plants (inverter-duty)
Commercial buildings, malls, hospitals and data centres
Treatment plants, pump stations, tunnel and metro lines
Rectifier and electrolysis plants (pulse transformers)

Why Powals?

Sized to Order

Sizing to your load profile, ambient temperature and short-circuit power.

Loss Optimisation

Core and winding selected on a life-cycle-cost basis for no-load and load losses.

Hermetic Safety

Oil never contacts the atmosphere; the need for drying and periodic analysis disappears.

Reference Standards

TS EN 60076IEC 60076

Certificates and test reports belong to the supplied products and their manufacturers; shared with the quotation file.

Frequently Asked Questions

What power and voltage range do your transformers cover?+

We supply 25 kVA–5000 kVA distribution transformers and 5 MVA–16 MVA MV power transformers, with voltage levels up to 36 kV.

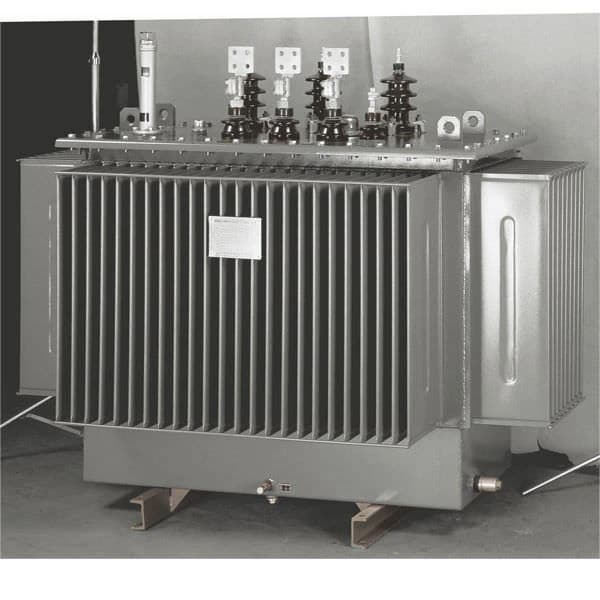

What is a hermetic transformer?+

In a hermetic transformer the oil never contacts the atmosphere, eliminating the need for drying and periodic oil analysis, lowering maintenance cost and extending insulation life.

Do you supply inverter-duty transformers for solar plants?+

Yes. Including dual-secondary and pulse configurations, inverter-duty transformers for solar/wind plants are supplied to order.
